Seastar CCX205 TFXtreme OMC / Johnson / Evinrude Control Cable

• Seastar Solutions Xtreme 479 type control cable
• Directly replaces 1979 and up OMC; Johnson; and Evinrude shift and throttle cables with OMC/BRP controls
• For OMC turbo jets with OMC side mount controls that accept OMC snap in O.E.M. type cable
• Manufactured specifically for the marine environment
• Drop-in replacement cable; uses existing connection components
• Stainless steel and brass fittings
• Xtreme cables feature a patented splined core for easy inner cable movement with minimum lost motion
• 10 contact point cable core allows cable to glide smoothly in both directions
• 4 in. minimum bend radius
• Heavy duty .34 in. black HDPE outer casing withstands UV; salt water; oil; gasoline; and other chemicals
• Measure cable to be replaced from tip to tip and round up to the next foot to obtain correct length
• For new outboard installations - measure cable routing path; round up to the nest foot and then add 4 feet for loop at engine to prevent kinking
• For new inboard or stern drive installations – measure cable routing path and round up to the next even foot
• Formerly Teleflex Marine cable

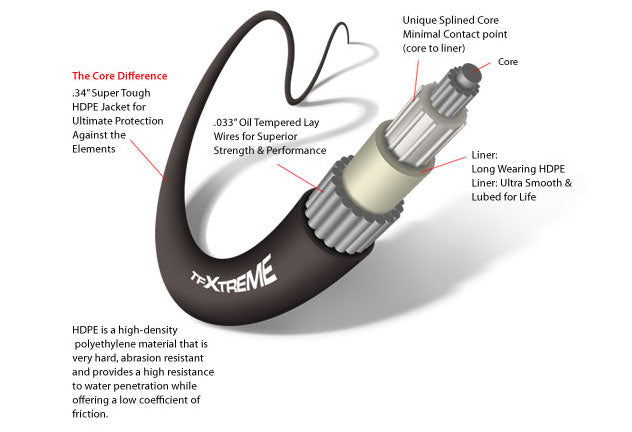

Teleflex TFXTREME Control Cable's unique design incorporates a patent-pending splined-core which allows easy movement and minimum lost motion. Simply the best cable in the business. Teleflex’s unique TFXTREME technology incorporates a patented splined core. Ridges on the core allow a close fit with the cable’s inner liner; but with minimum contact; so the core glides back and forth smoothly like a skater on ice. RESULT: a control cable with easy movement AND minimum lost motion. HDPE jacket is made with a high-density polyethylene material that is very hard; abrasion resistant and provides a high resistance to water penetration while offering a low coefficient of friction. Features: .34” Super Tough HDPE Jacket for ultimate protection against the elements Unique splined core minimal contact point (core to liner) Long wearing HDPE liner: Ultra smooth & lubed for life Designed for complex and/or long cable runs (or to simply create a superior feel) Ideal for foot throttle applications on performance boats/bass boats. All TFXTREME cables are available in 1 foot increments. NOTE: Control Cables Model CC205 Series; Replaces OMC Johnson / Evinrude 479 Series. * Teleflex replacement cables for OMC; Johnson; Evinrude (1979-date) with OMC Controls * Can be used to replace Morse # D302029 (OS) cables * Exceeds engine manufacturer's specifications * Nominal 3" travel - 4" minimum bend radius * Splined core for unparalleled smoothness and response The original CC205 Cables are being replaced with the CCX205 Extreme Cables for the 2010/2011 year.
