Albin Group DC Driven Circulation Pump w/Brushless Motor - BL30CM 12V [13-01-001]

Save $58.85 Save $58.85
Original price $176.80
Original price $176.80 - Original price $176.80
Original price $176.80
Current price $117.95
$117.95 - $117.95
Current price $117.95

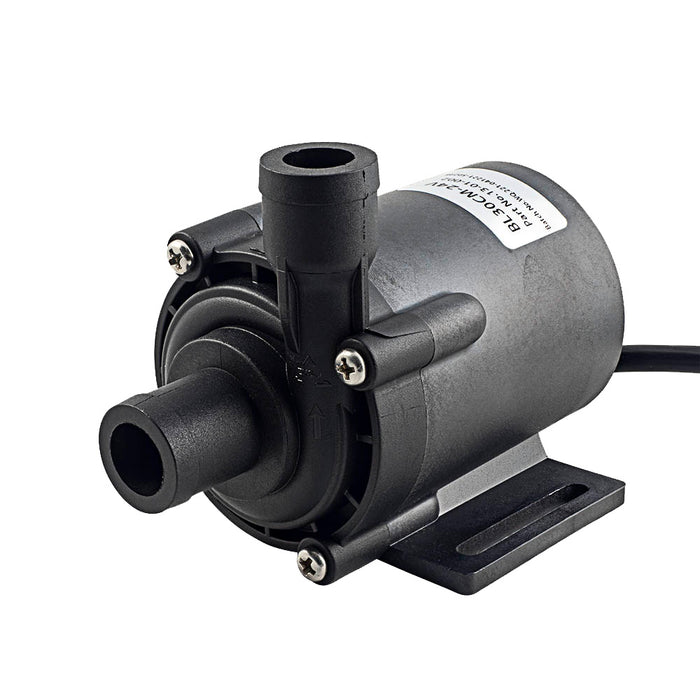

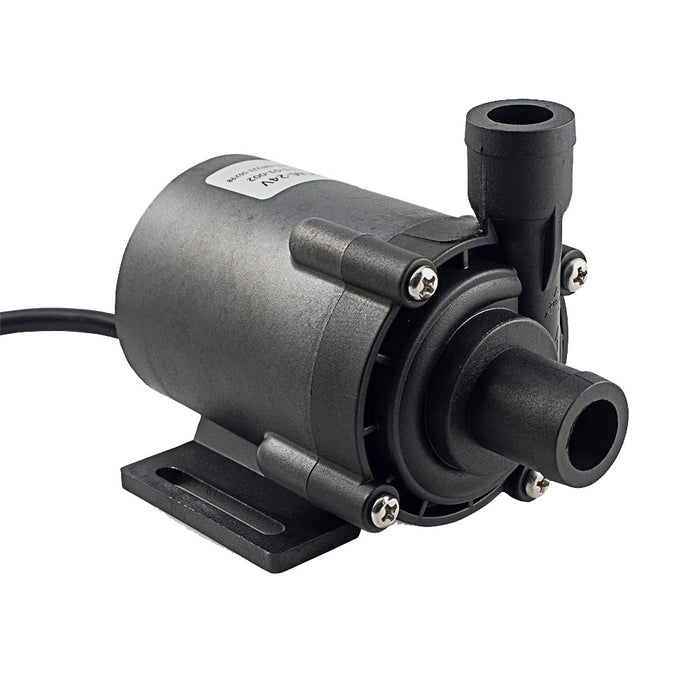

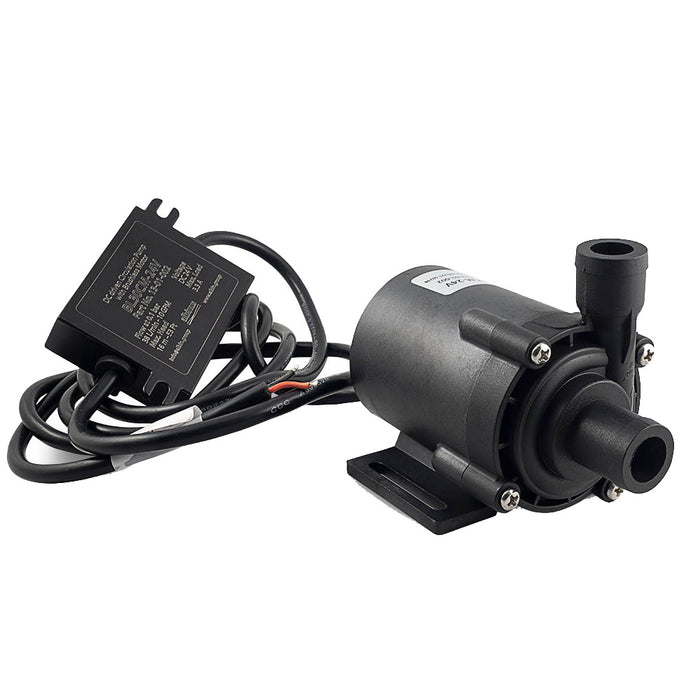

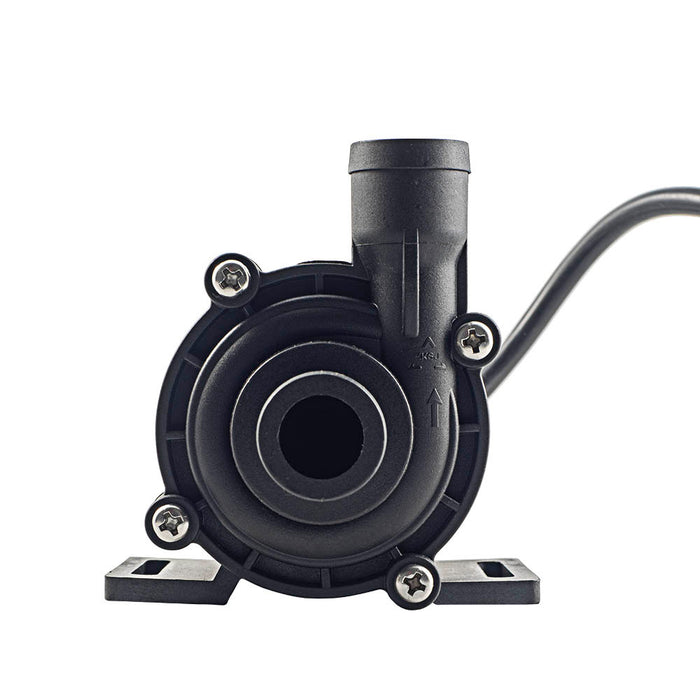

DC Driven Circulation Pump with Brushless Motor - BL30CM 12V

This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.

Features

  • Motor brush-less magnetic isolated design
  • For continuous duty
  • Life span: 20,000 hours
  • Materials of pump housing: ABS, PES/SPS/PA66
  • Motor IP classification: IP 68
  • Noise class: 35dB
  • The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C

Specifications:

  • Port size: (inch) 3/4" / (mm) 20
  • Weight: 0.48 kg
  • Capacity at 0.1 bar: 32 l/min
  • Capacity at 0.25 bar: 28 l/min
  • Max load: 4.5A
  • Max power consumption: 55W

*Includes pump and motor

Specifications:

  • Type: Pumps/Drives
  • Box Dimensions: 4"H x 5"W x 5"L WT: 1.6 lbs
  • UPC: 7340176606907
